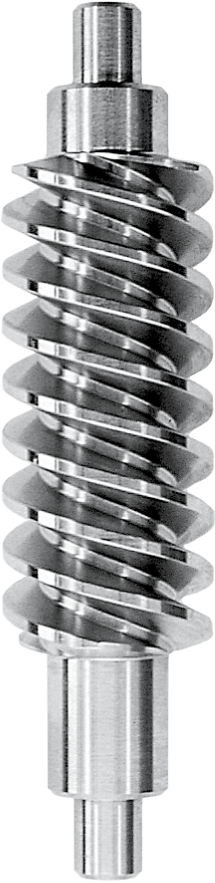

Gears and worm screws
Gears and worm screws
machining
Medical applications
Medical applications
abrasive machining
Micro mills and dental tools
Micro mills and dental tools
grinding

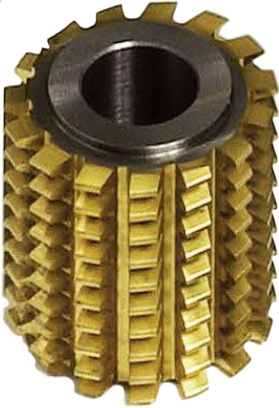

Milling cutter, hob, whirling cutter
Milling cutter, hob, whirling cutter
sharpening
Gears and worm screws

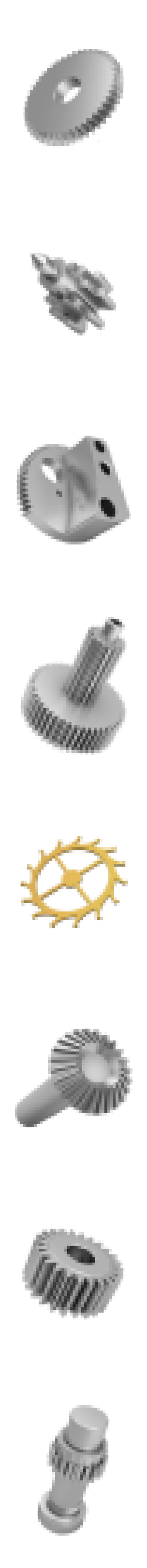

1000 D-drive
Direct drive gear hobbing machine for micro mechanics, watchmaking and other max module 1.0 mm gears
Workpiece diameter
≤ 40 mm
Workpiece length
≤ 100 mm
Hob diameter
≤ 32 mm
Max milling head angle
± 35°
Discover also 2000 D-drive for max module 4.0 mm gears and 500 D-drive for max module 0.6 mm gears
Click here to learn more
Hobbing
Rolling
Milling
Skiving

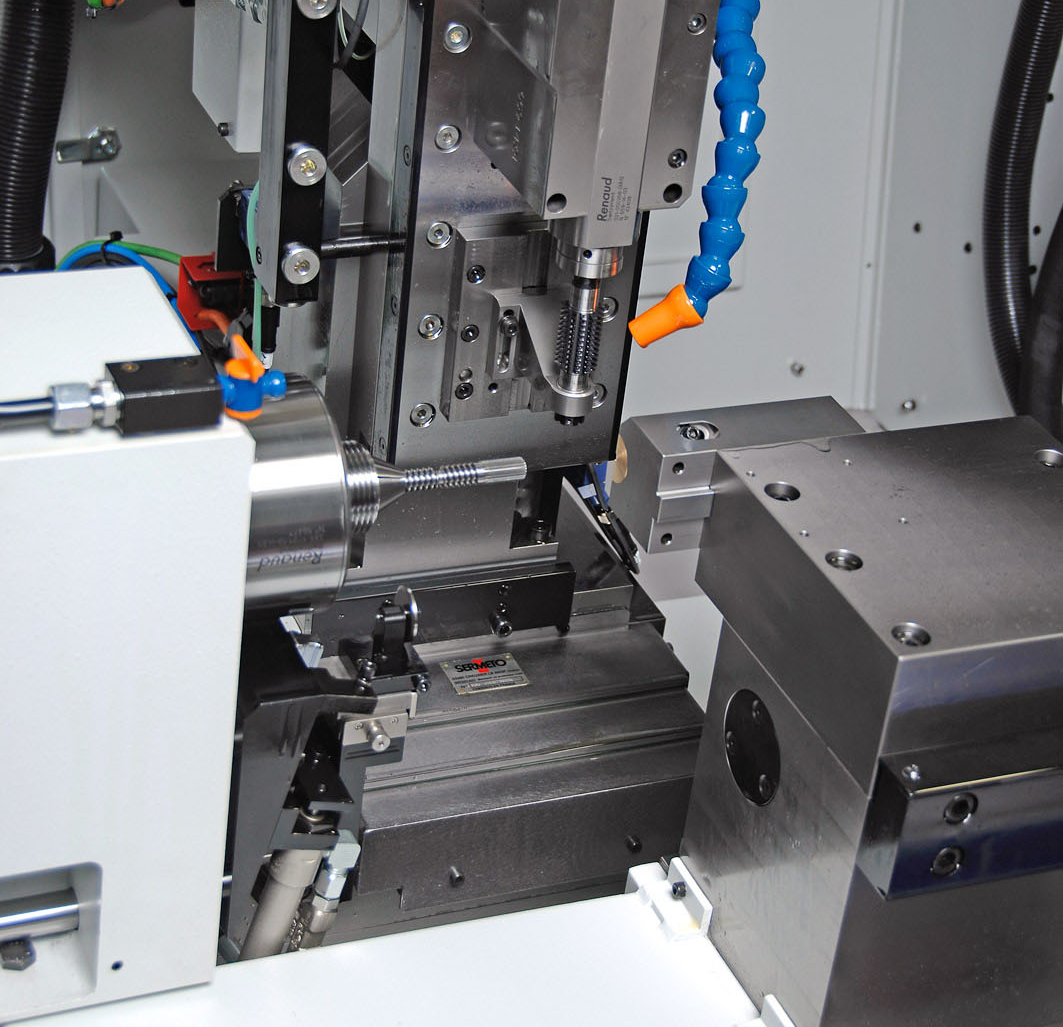

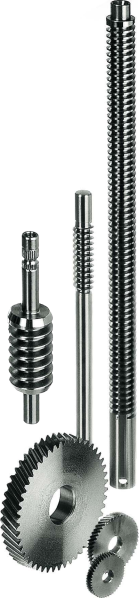

MZ130
Enhanced production flexibility:
gear hobbing + worm milling
1.5 mm
max module
2.0 mm
max module
Workpiece diameter
2 - 55 mm
Workpiece length
Automatic loading
205 mm
Manual loading
300 mm
Milling cutter diameter
Gear hobbing
16 - 40 mm
Worm milling
53 - 100 mm
Max milling head angle
Gear hobbing
± 45°
Worm milling
+ 45° / -37°
Click here to learn more
Hobbing
Rolling
Milling
Skiving

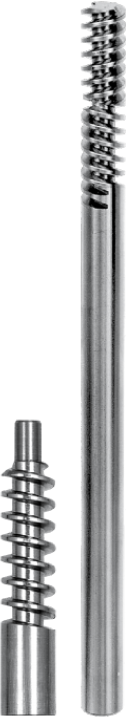

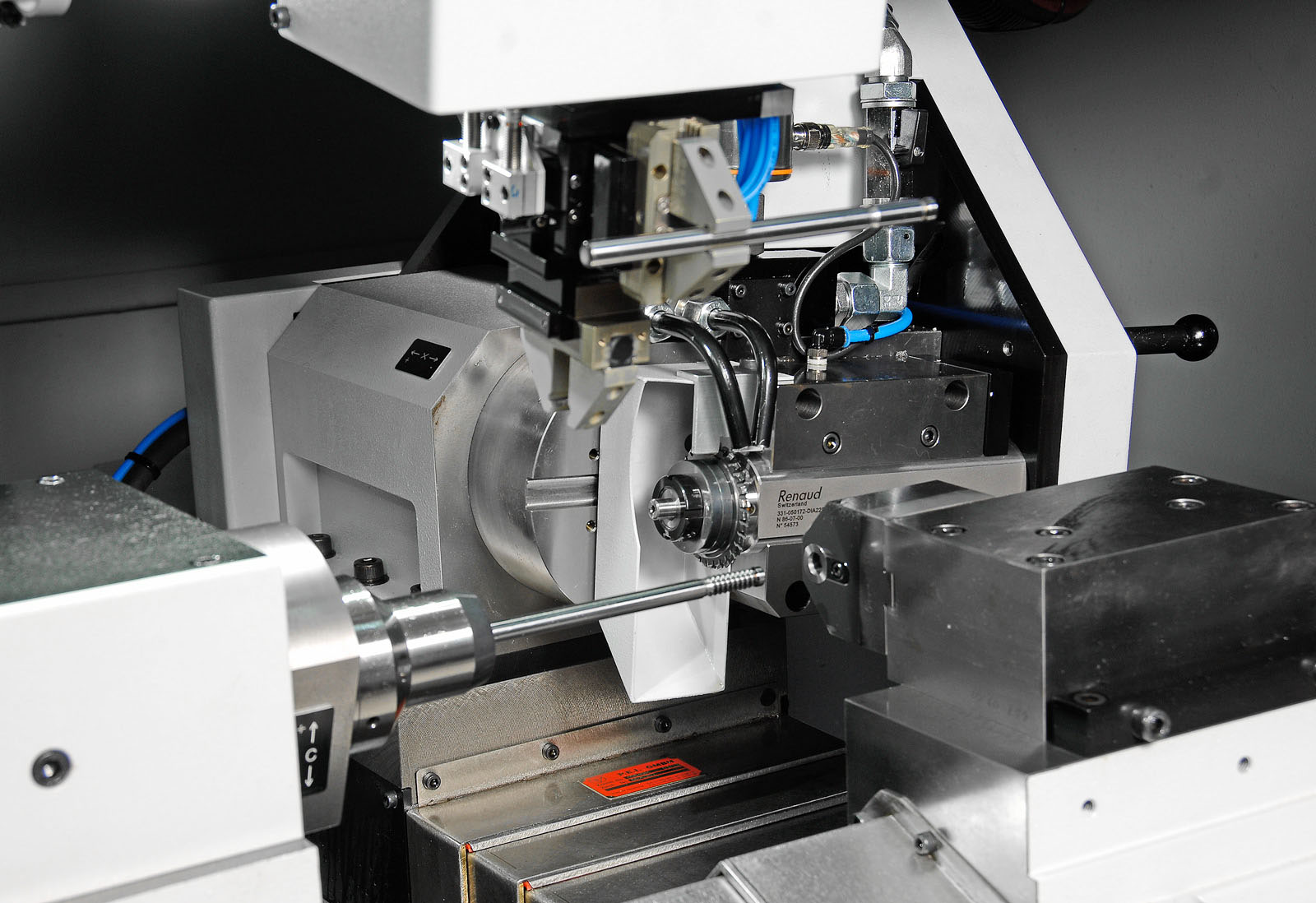

M667
Worm milling up to 200 mm in length
Max
module 1.75 mm
Workpiece diameter
Automatic loading
25 mm
Manual loading
45 mm
Max workpiece length
200 mm
Max cutting length
200 mm
Swivel angle (manual)
± 35°
Discover also
M677 Duplex
2 workpieces at a time, up to 2.5 mm module, 30 mm diameter, 300 mm workpiece length and 180 mm cutting legth
Click here to learn more
Hobbing
Rolling
Milling
Skiving

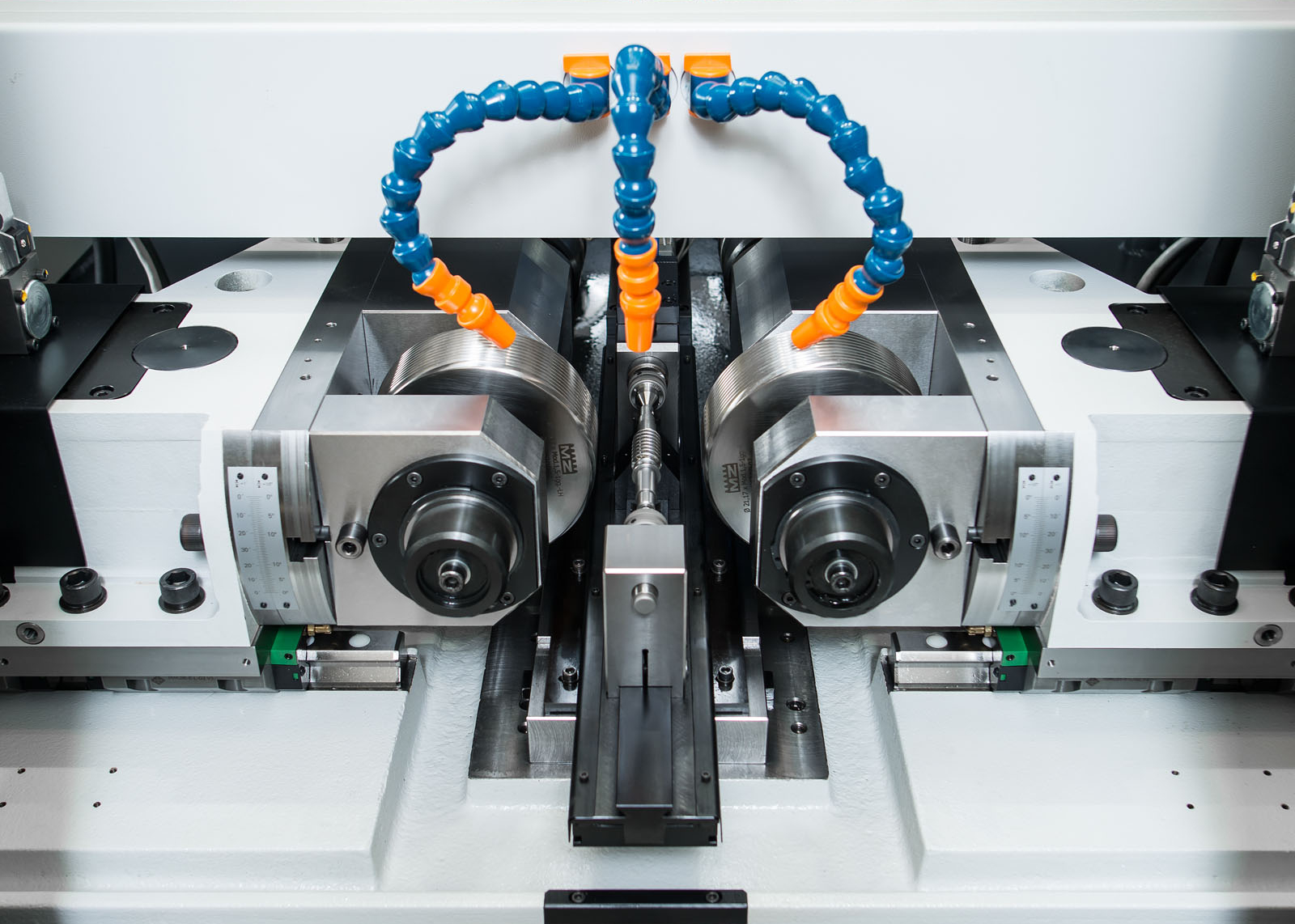

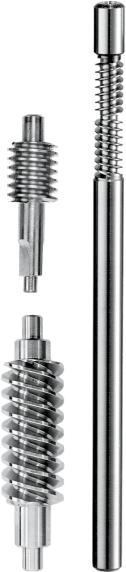

M312
Profile rolling
max
module 1.75
mm with easy integration of different automated loading systems
Max rolling force
120 kN
Workpiece diameter
2 - 48 mm
Rolling dies face width
90 mm
Swivel angle
± 8°
Hobbing
Rolling
Milling
Skiving

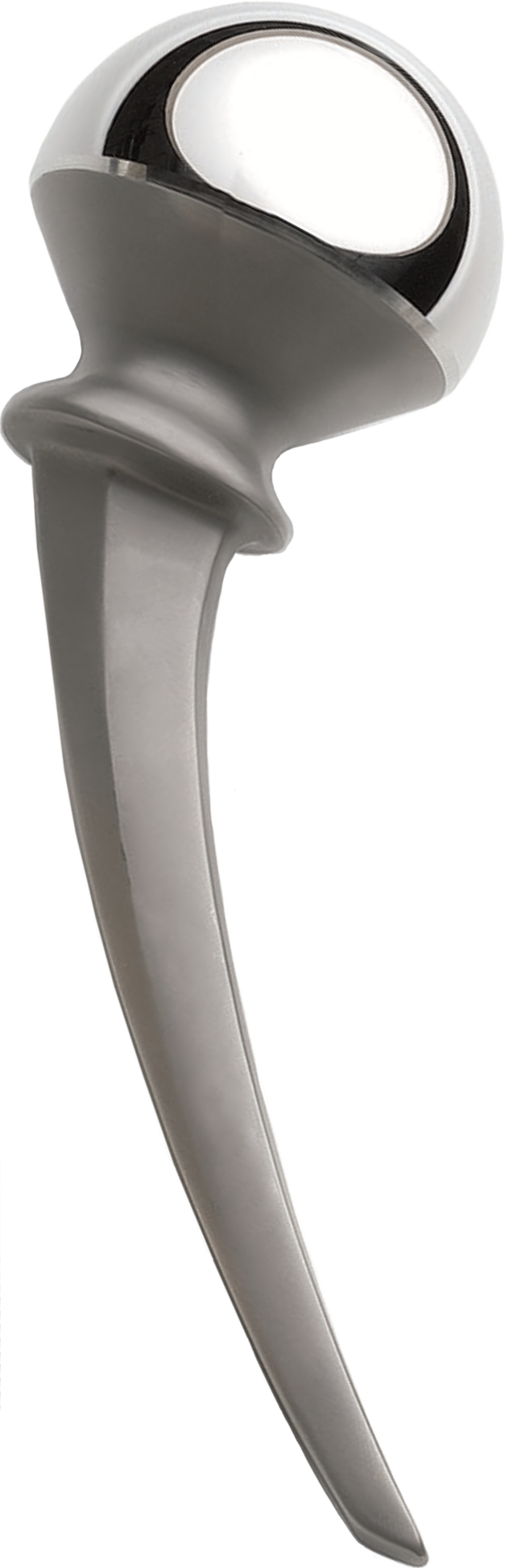

Medical applications

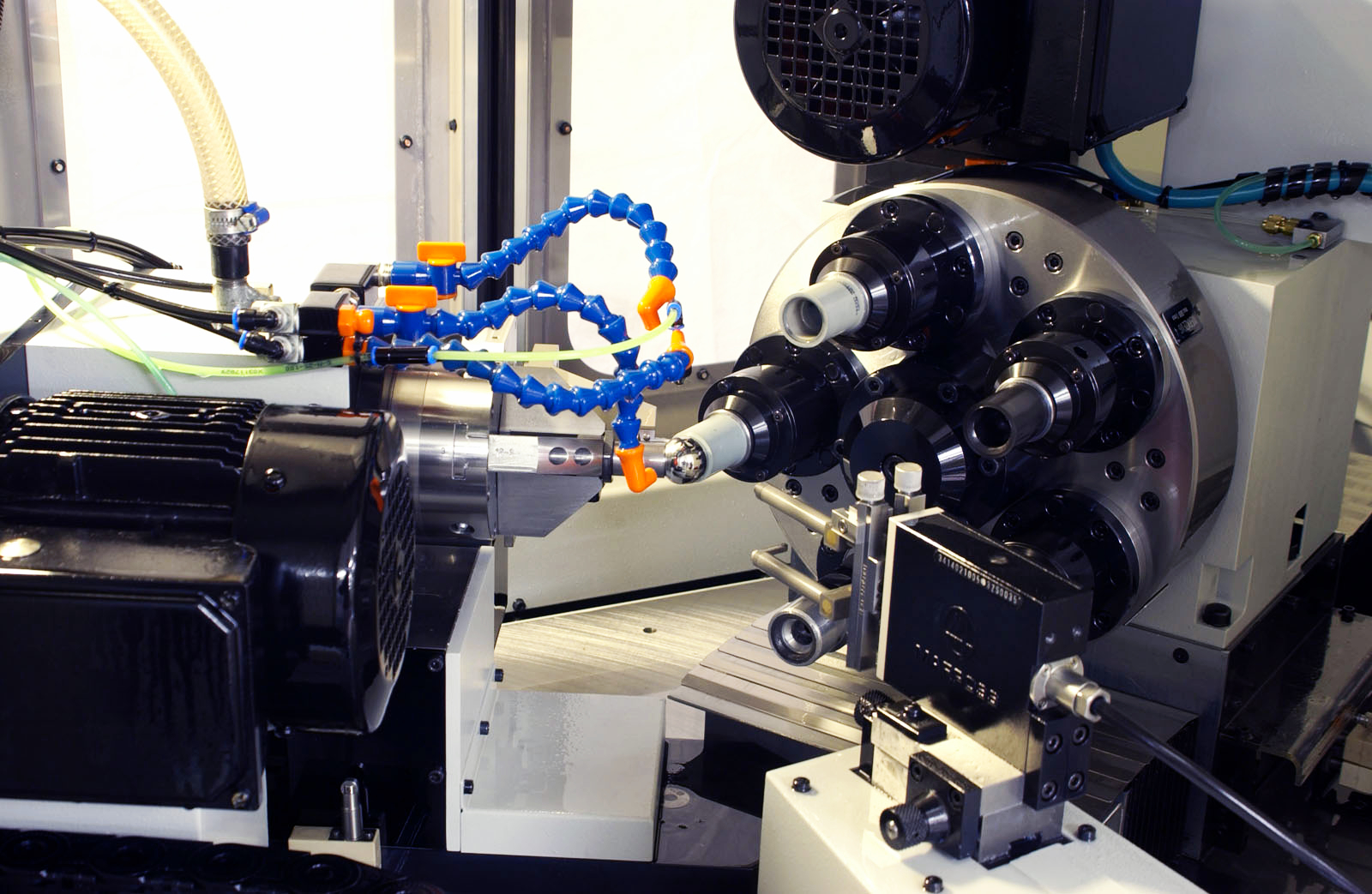

M641
Grinding and honing machine specialized in medical applications: hip heads, inserts, intervertebral disk implants.
Steel, titanium and ceramics up to 64 mm in diameter.
Special features include turrethead with 5 tool stations, integrated Marposs measuring unit and coolant purification with turbo centrifuge
Swivel angle
0 - 72°
Max tool rotation speed
5 700rpm
Max worpiece rotation speed
2 000rpm
Click here to learn more
Polishing
Grinding
Honing

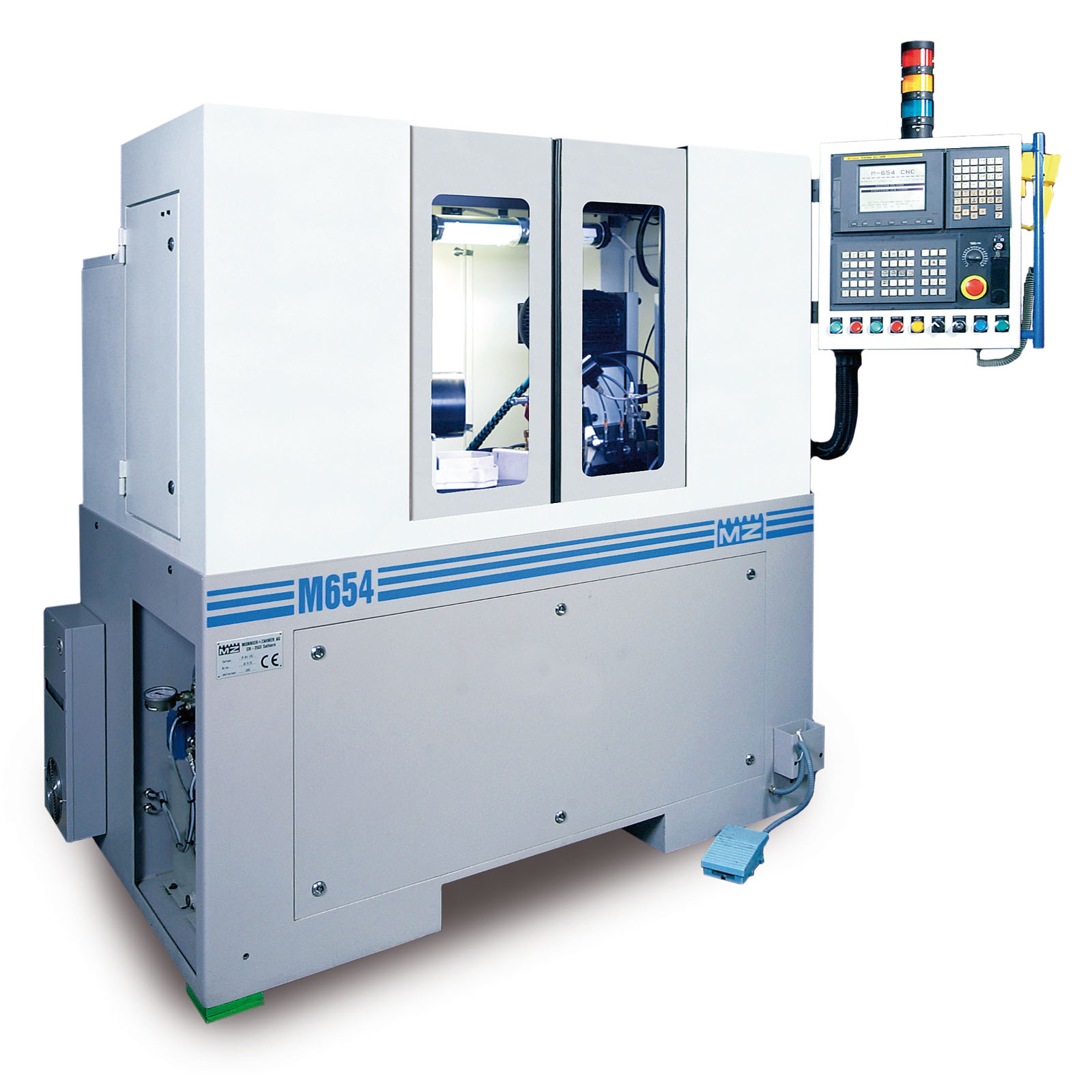

M654
Polishing machine specialized in medical applications: hip heads, inserts, intervertebral disk implants.
Ceramics up to 64 mm in diameter.
Special features include temperature control via an infrared termometer, and polishing tool with integrated polishing suspention supply
Swivel angle
15 - 75°
Max tool rotation speed
5 700 rpm
Max workpiece rotation speed
2 150 rpm
Click here to learn more
Polishing
Grinding
Honing

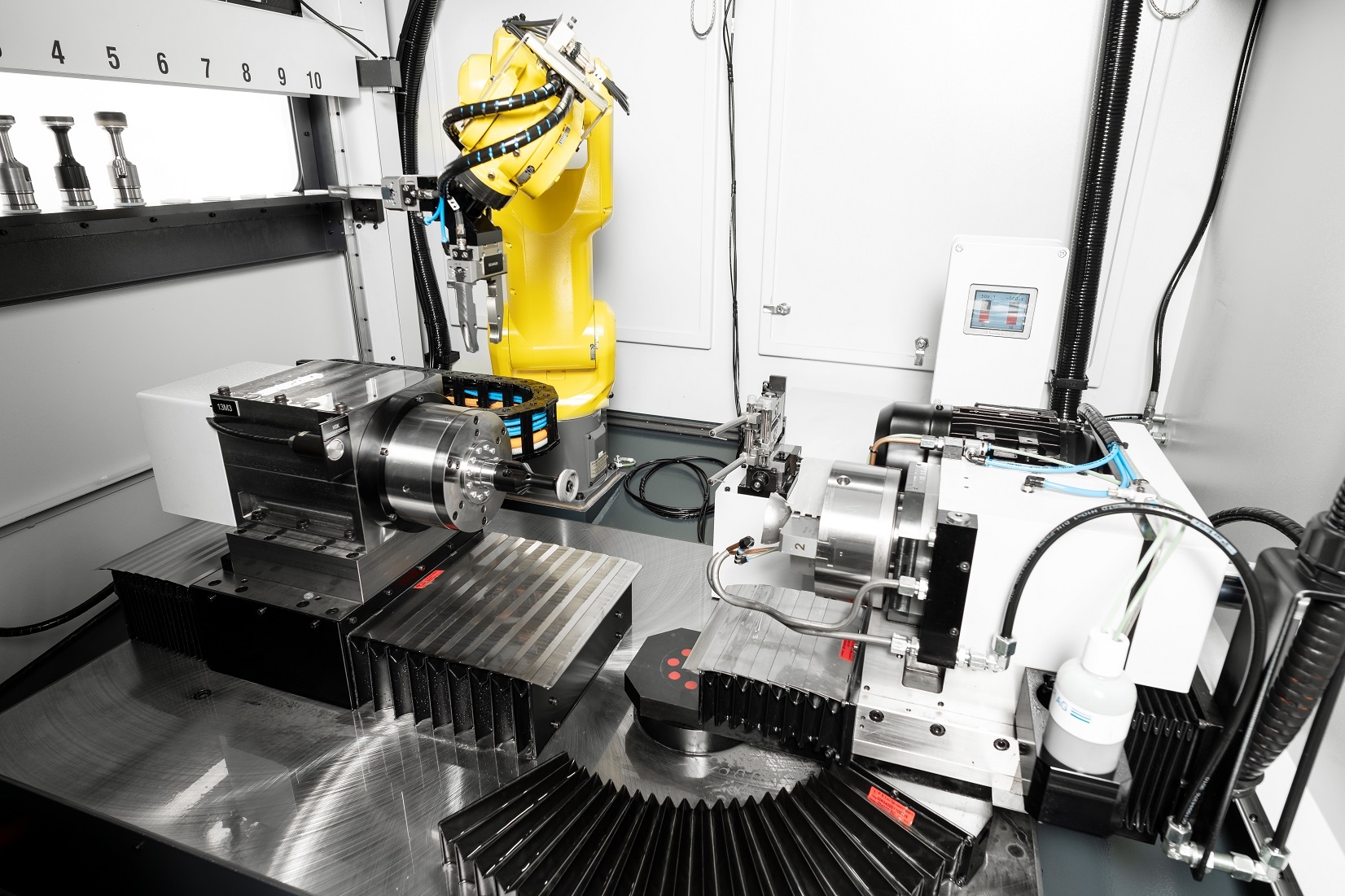

M668
Honing and polishing machine specialized in medical applications: hip heads, inserts, intervertebral disk implants.
Steel, titanium and ceramics up to 64 mm in diameter.
Special features include tool changer and tool magazine for 10 grinding tools with robot, integrated Marposs measuring unit and optional workpiece magazine with loader
Swivel angle
0 - 75°
Max tool rotation speed
10 000rpm
Max worpiece rotation speed
1 000rpm
Click here to learn more
Polishing
Grinding
Honing

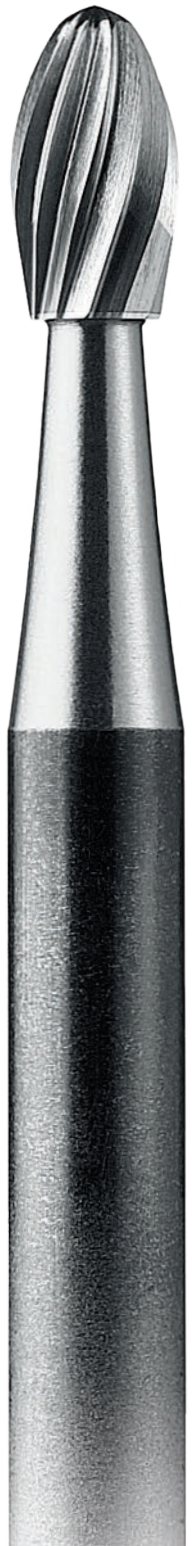

Micro mills and dental tools

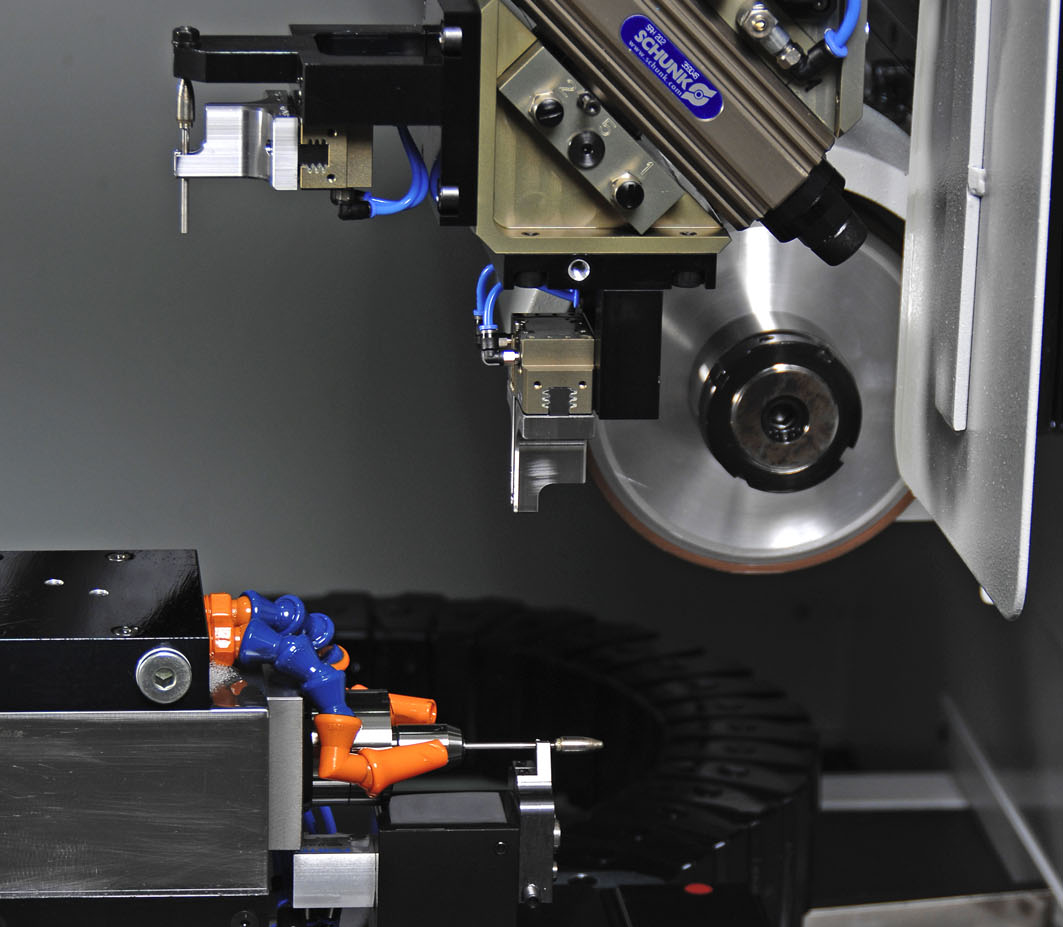

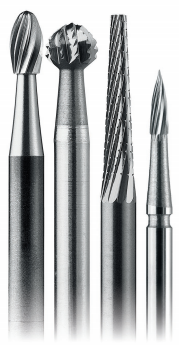

M642 Evolution
7-axis grinding machine for dental and industrial cutters measuring up to 12 mm in diameter.
The machine is equipped with an automatic loading system with funnel magazine and drum magazine.
The griding spindle supports up to 3 grinding wheels.
Click here to learn more

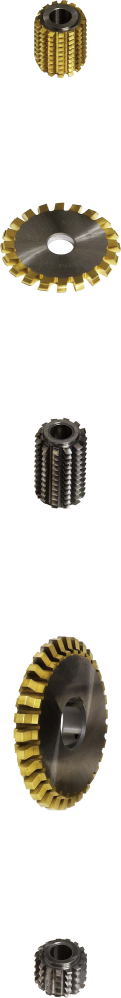

Milling cutter, hob and whirling cutter

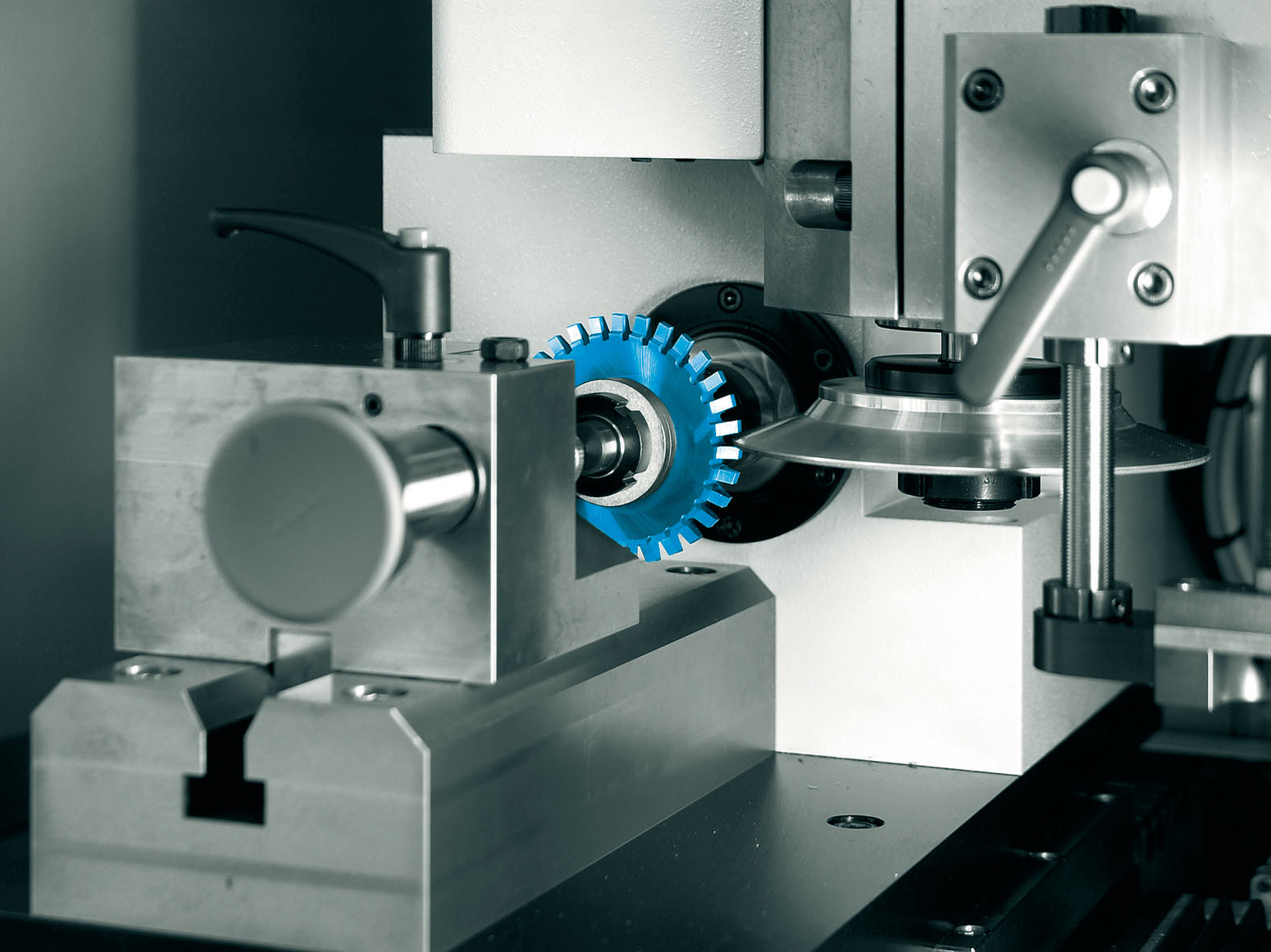

M657
Sharpening machine: extend the life of your tools in-house.
Suitable for:
Mill cutter diameter
25 - 120 mm
Whirling cutter diameter
15 - 30 mm
Hob diameter
6 - 60 mm
Click here to learn more
